Large Oil Press Machine

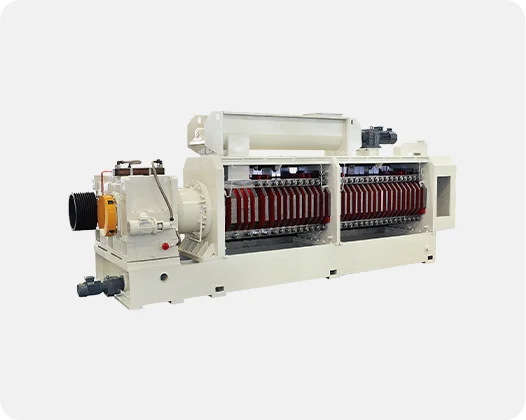

ZY500 Screw Oil Press Machine

ZY500 screw oil press is another large oil press equipment researched and developed by our company, which having the advantages of large oil press machine at home and abroad.

500-600 T/D Processing capacity
≤18 % Residual oil rate

Product Details

The equipment is widely used in various oil crushing and oil making. The model has the advantages of large daily processing capacity, wide application range, low dry oil residue rate, low energy consumption, small occupation area, convenient operation and maintenance, etc.. The machine adopts electric hydraulic open and close press cage device. lt is easy to assemble and disassemble, and it can also reduce the labor intensity. The main transmission can be selected with domestic or foreign well-known brand products, which equipped with cold oil spray lubrication system to have the stable operation and reduce the maintenance.

Model NoDaily Processing CapacityCake Oil RatePower MatchingOverall Dimensions(LxWxH)Weight
ZY500500-600 T≤18 %450KW6157x1590x2340mm16000KG

ZY500 oil press configuration and features:

The pressed cake has good forming effect, good color and is conducive to leaching.This equipment has a wide range of applications and is not too strict with respect to moisture and temperature. It is also a high and low temperature dual-purpose machine. Even if the material temperature is pressed at a low temperature of 80-90 degrees, it will not affect the residual oil index of the dry cake and can ensure low denaturation of protein in the cake.

Main equipment configuration:

1.The main reduction box adopts Guomao reducer; the main gearbox has a cold oil circulation spray device to fully lubricate the gearbox bearings and gears, greatly extending its service life. The horizontal feeding frequency conversion auger is 4KW and the oil auger is 1.1KW;

2.The cake-discharging end of the main shaft is a hollow shaft, equipped with a cold water circulation device to avoid cake sticking;

3.The screw is made of hard alloy and its service life is not less than 8-12 months.

4.The stainless steel shield is 1.2mm thick and equipped with a self-cleaning sight glass;

5.Equipped with power: Y315S-6 (450Kw), Siemens Beide motor (high efficiency and energy saving, second level energy efficiency, IP55, insulation grade F)
