Soybean Oil Production Line

Our soybean oil processing plant is engineered for high efficiency and stable oil quality, integrating three specialized sections. The Pre-treatment section cleans, cracks, and softens soybeans to prepare them for oil extraction. The Solvent Extraction section uses a chemical process to efficiently separate crude oil from soybean flakes. The Refining section then purifies the crude oil—removing impurities, gums, and odors—to produce high-grade, market-ready soybean oil.

Production Capacity: 100-5000TPD
CONSULT

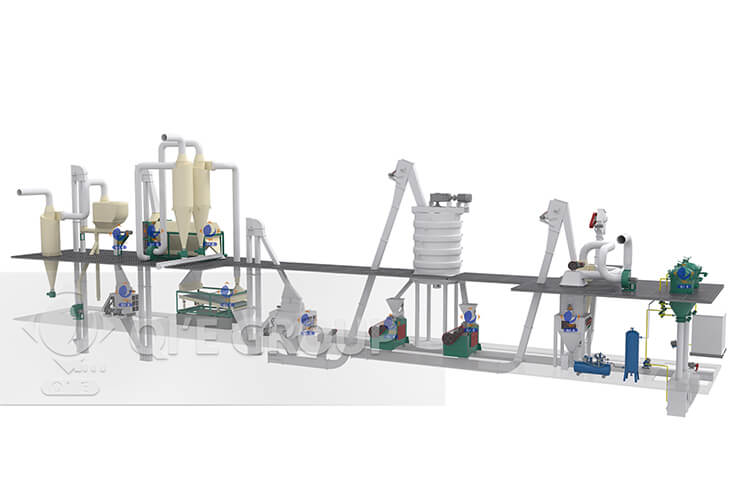

Soybean Pretreatment

Soybean → Cleaning → Crushing → Softening → Flaking → Cooking → Pressing → Filtering

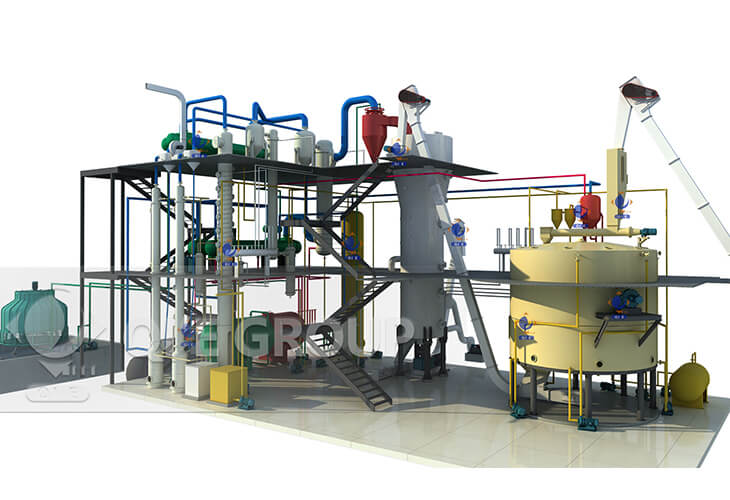

Soybean Oil Solvent Extraction Plant

Solvent Extraction


Conditioned flakes are immersed in solvent (hexane) within a sealed extractor. Solvent dissolves oil from solids, producing miscella (oil+solvent) and solvent-wet meal.

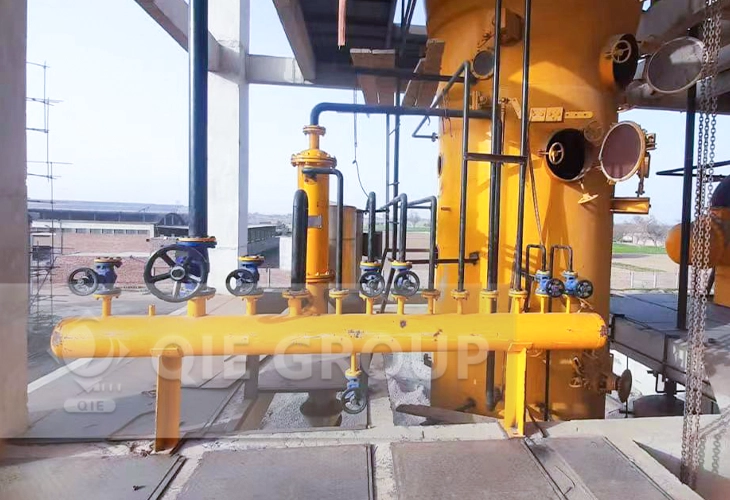

Meal Desolventizing


Wet meal enters DTDC where direct and indirect steam strip residual solvent. Steam vaporizes solvent while drying and cooling meal for safe storage.

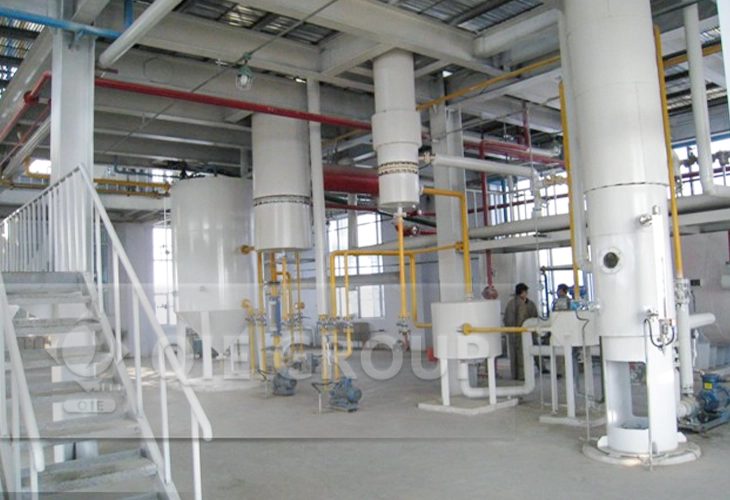

Evaporation System


Miscella passes through evaporators where indirect heating vaporizes solvent. Rising film evaporators concentrate miscella, removing most solvent from crude oil.

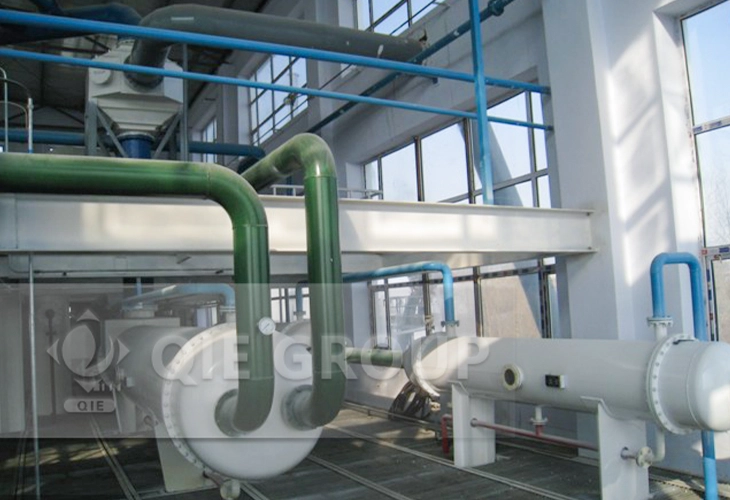

Solvent Recovery


Solvent vapor from all stages is condensed, cooled, and recovered. Recovered solvent returns to extraction while non-condensable gases pass through mineral oil scrubber for final recovery.

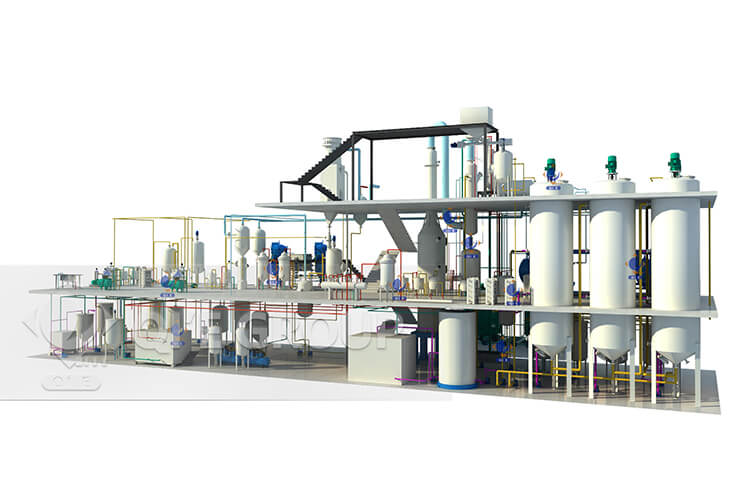

Soybean Oil Refinery
