Pre-treatment Process And Press Process

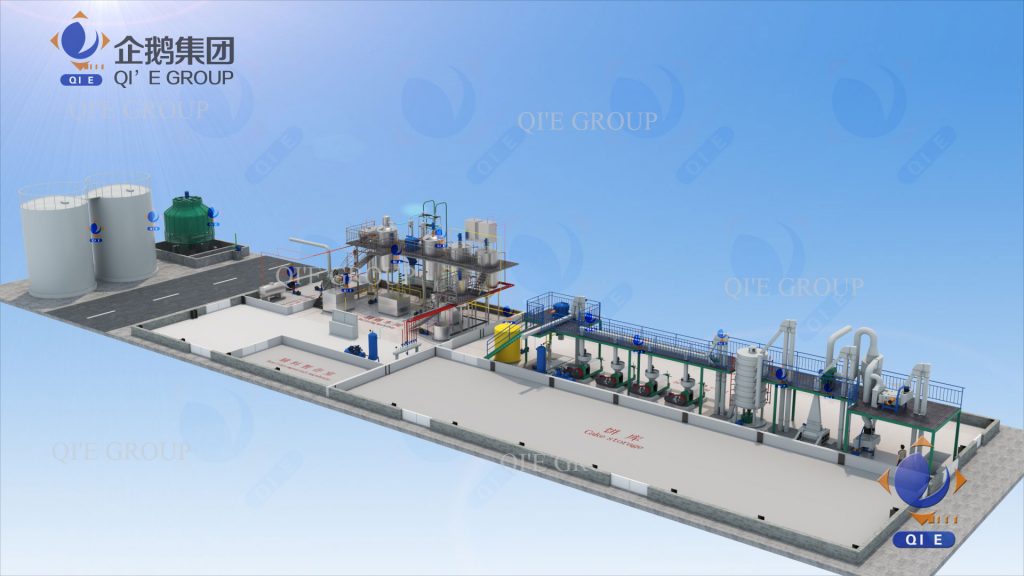

We supply the whole edible oil pressing line. It contains pre-treatment process and press process. Production Capacity:10-1000TPD
Material: sunflower seed, peanut, rapeseed, copra, sesame, soybean and so on.

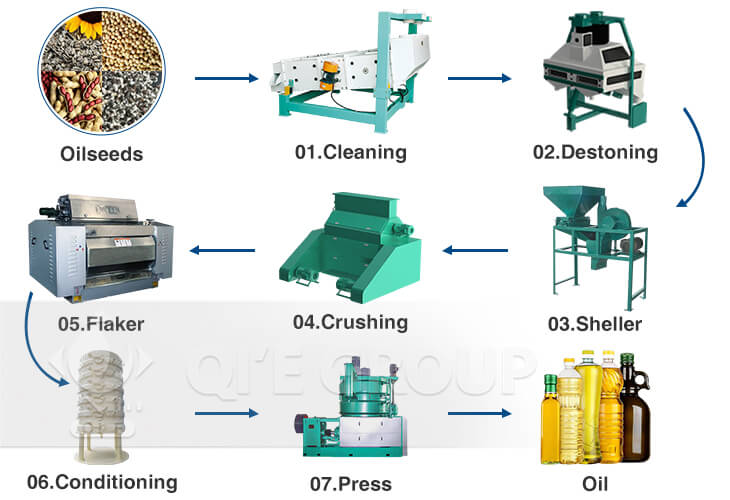

Main process include: Seed Cleaning & Weighing, Crushing, Flaking, Cooking, Pressing, Filtering.

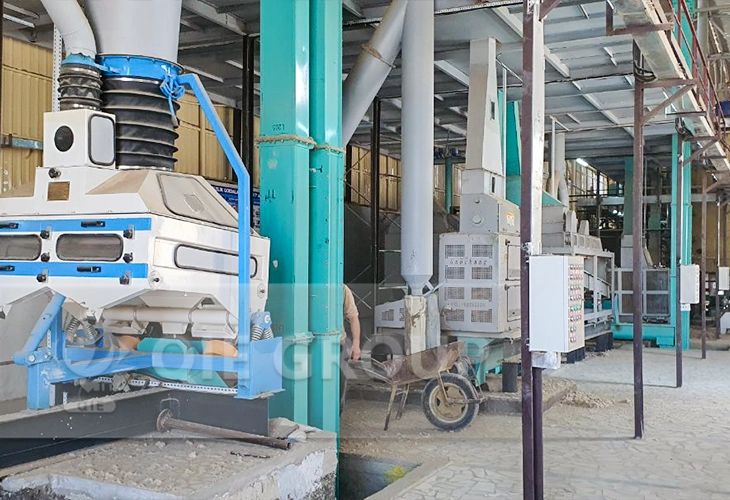

Using magnetic separator, weighing scale, and screener to remove impurities of the seeds.
Crushing the oilseeds to ensure a good softening and flaking effect.

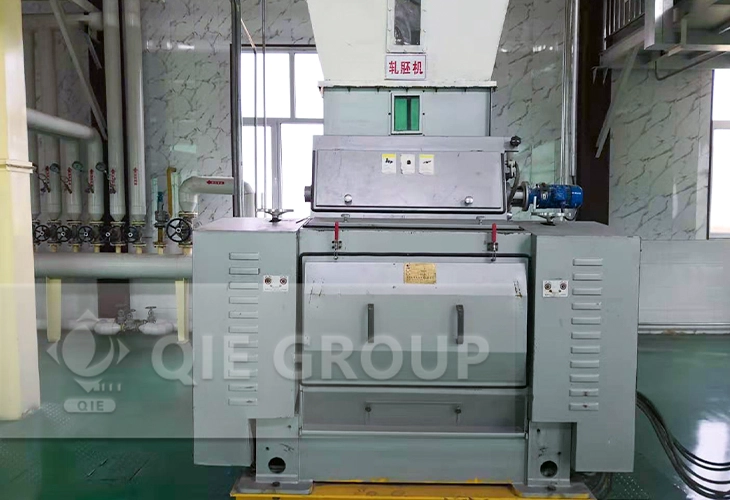

The roller flaker can crush and flake uniformly the broken seeds into thin flakes for the oil mechanical pressing.
Using heating and cooking to adjust temperature and moisture of the seeds, improving oil yield.

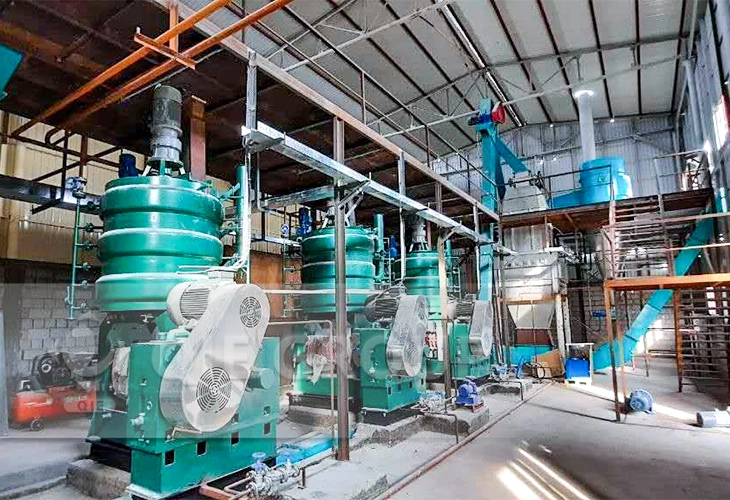

Pressing the high-oil material to get oil and cake, then treated by solvent extraction.
Separating oil residue by oil drag conveyor firstly, crude oil then enters to settling tank for further separation. Crude oil from settling tank is pumped to a horizontal screw centrifuge or leaf filter for further removing impurities.
