Large Oil Press Machine

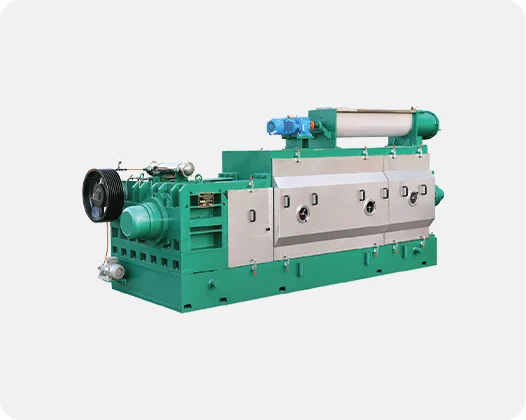

ZY338 Screw Oil Press Machine

Model ZY338 screw oil press is one of the giant oil presses in our company , which is made according to the requirement of the oil and fat enterprise

250-300 T/D Processing capacity
≤18 % Residual oil rate

Product Details

The equipment is widely used to press various oil seeds to produce oil. lt also has the following advantages: high daly processing ability; wide applicability; low residual oil rate of cake; low energy consumption ; small occupation area, convenient operation and maintenance.

Model NoDaily Processing Capacity(Rapeseed, sunflower in shell)Cake Oil RatePower MatchingOverall Dimensions(LxWxH)Weight
ZY338250-300 T≤18 %185KW5600mmx1850mmx2380mm16000KG

Equipment Features:

The pressed cake has good molding effect, good color, and is conducive to leaching. The equipment has a wide range of applications and is not too strict with respect to moisture and temperature.

Main equipment configuration:

1.Oil outlet auger reducer 1.1KW (Dongfangweier or Zhejiang Redson), feeding horizontal auger reducer 3.0KW (Dongfangweier or Zhejiang Redson);

2.The gearbox gears of the main gearbox are equipped with a cold oil circulation spray device to fully lubricate the gearbox bearings and gears, greatly extending their service life;

3.The screw is made of hard alloy, with a service life of no less than 12 months. The bar is carburized and the surface is chromium-plated, with a hardness of HRC56-62;

4.The shield, windshield and exhaust pipe are made of stainless steel 304, with oil-resistant rubber strip sealing design; with self-cleaning sight glass.
