Palm Fruit Oil Press Machine

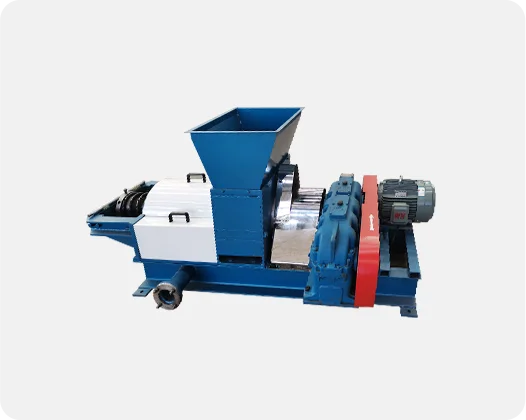

1TPH Palm Fruit Oil Press

Small palm oil processing capacity oil press, using domestic well-known brand motor performance is stable, low maintenance cost, good pressing effect. Has been widely used in Africa and South America market.

1TPH Processing capacity
<8% Residual oil rate

Product Details

1.The motor adopts a well-known domestic brand, and the reducer adopts a hardened gear reducer, which is more stable and durable than the cycloid reducer. The bearing adopts the well-known domestic brand Harbin bearing.
2.Reasonable changes in the screw pitch of the squeezer make the discharge smoother; the squeezer at the feed end adopts a single-rod double-helix structure to make the squeezing more complete. A material-push device is installed at the feed inlet to solve the problem of material bridging at the feed inlet and make the feed smoother.The frame of the oil press is strengthened and the height of the frame is lowered, so that the center of gravity of the oil press is moved down, making it more stable and durable. The feed port of the oil press is lowered, which is more convenient for feeding.
Advantage:
Suitable for small processing capacity oil press, relatively simple structure, stable performance, low use and maintenance costs, good pressing effect. Has been widely used in Africa and South America market

Processing capacity
(FFB)TPH
Number of screwsSpindle speed(r/min)Feed temperature(℃)Residual oil rate of cake(%)Palm kernel breakage rate(%)Motor power(kw)Size(mm)(L*W*H)Weight(kg)
1Single helix15~2090-95<8<157.52410×850×930620
